What is Chemical Machining (CHM)?

Chemical Machining (CHM), also known as chemical milling or etching, is a non-contact process that removes material from a workpiece through controlled chemical dissolution. This technique is ideal for creating intricate patterns, precise cavities, and thin components without the mechanical stresses or cutting forces associated with traditional machining.

The process works by coating the workpiece with a protective maskant, exposing only the areas to be etched to a chemical etchant (acid or alkaline solution). This allows for high-precision, repeatable etching, especially when used with photolithographic masks.

CHM offers several advantages, including the ability to machine hard and brittle materials (like ceramics, glass, and metals) with no distortion or thermal damage. It’s used in a wide variety of industries for applications such as precision cutting, deburring, and surface preparation. Additionally, it can handle large areas simultaneously, making it an efficient solution for tasks like weight reduction on aircraft panels.

---

Applications & Industries Using CHM

• ✈️ Aerospace & Defense: Precision thinning of aircraft panels, creating complex, stress-free components for aircraft and missiles.
• 💻 Electronics & Semiconductors: Used for PCB etching, semiconductor lead frames, and RF shielding, creating fine micro-features with extreme precision.
• 🩺 Medical Devices: Manufacturing intricate surgical instruments and implants from thin, biocompatible materials with no burrs or surface distortion.
• 🚗 Automotive: Producing precision metal foils, filters, and decorative trim for automotive components, especially in complex shapes.
• 🏭 Industrial Manufacturing: Applicable to parts like encoder disks, metal meshes, and precision components that require fine detail and stress-free processing.

---

How EstiSource Enhances CHM Sourcing

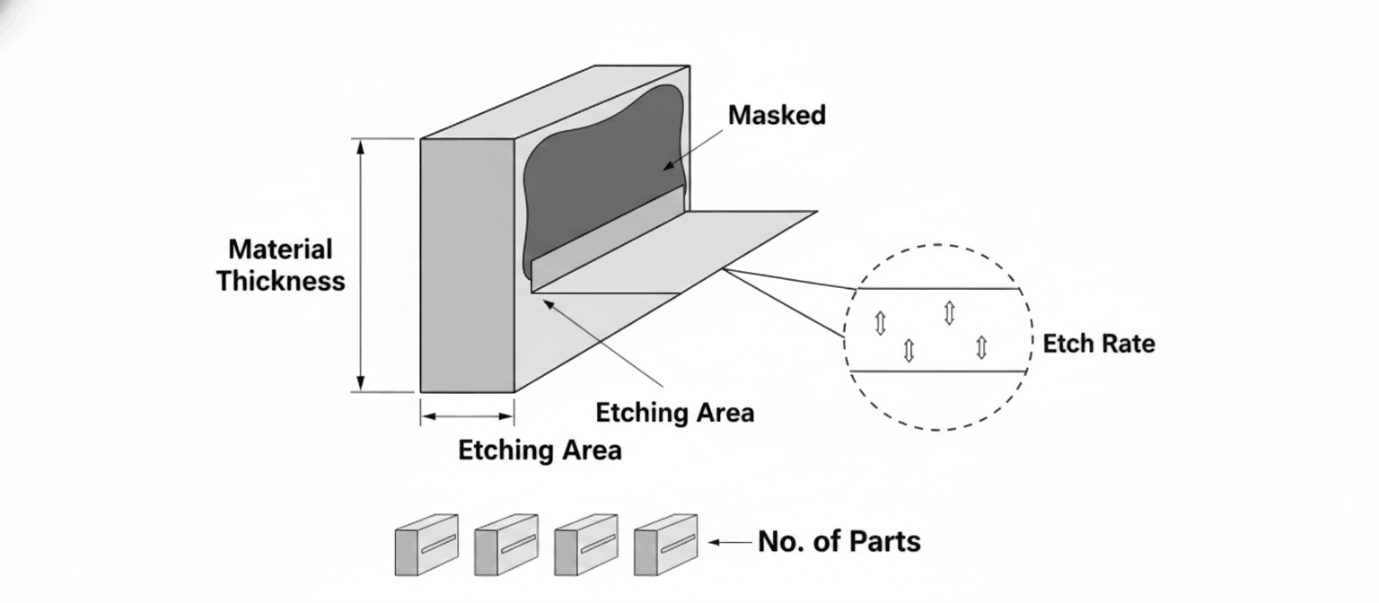

EstiSource’s platform simplifies chemical machining sourcing with a built-in CHM cost estimator. Users can input parameters like material type, thickness, etching area, and batch size to quickly estimate costs and turnaround times. Our platform provides highly accurate estimates, typically within ±10% of actual supplier quotes.

You can also compare the costs of machining different materials (e.g., stainless steel vs. aluminum) or adjust for batch size to see how economies of scale impact pricing. EstiSource connects you to a network of vetted CHM suppliers, ensuring you get competitive pricing, quality results, and fast turnaround times.

---

Benefits for B2B, B2C, and Startups

🔹 B2B Advantages

EstiSource helps B2B companies quickly evaluate the feasibility of chemical machining for their projects. By instantly generating cost and cycle time estimates, enterprises can make decisions faster, often saving up to 80% in RFQ cycle time. EstiSource also connects users to a global network of high-quality, vetted suppliers.

🔹 B2C Benefits

For individual designers or small businesses, EstiSource makes chemical machining accessible even for low-volume orders. With the ability to instantly generate cost estimates, you can quickly budget your projects without needing in-depth technical knowledge of the process.

🔹 Startups

Startups can validate the feasibility of chemical machining during the early stages of product development. With instant cost insights, they can test different materials and designs, ensuring they remain within budget and avoid costly manufacturing surprises. EstiSource’s platform also helps startups find flexible suppliers who accept small-batch runs and prototypes.
